Performance

This section holds the performance test results.  Users can select/highlight results and remove them using the Clear button in the top right of each section.

All results are also color coordinated to the Thresholds set in Agent Thresholds.

  • Results are stored here by date.
  • These results can be selected and cleared from the database.
  • Right click on the column headers to add/hide different information columns, including Time & Date of when the test was run.

Note: Results from Test Profiles will be filtered to the Test Profile tabs and corresponding individual tabs.  So clearing a result in one section, will remove it from the other.

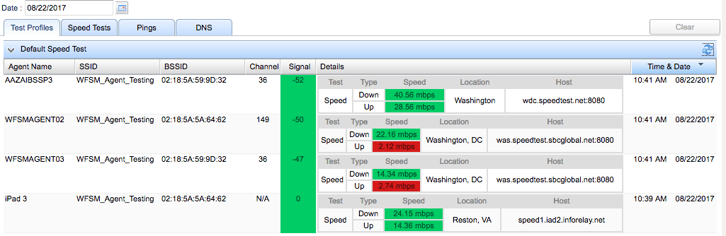

Test Profiles

All results from Test Profiles run will be organized here (with the exception of Auto Test Profile). Each tab will be a different Test Profile that has been completed, with all results from every Agent within.  These data points can be selected and cleared.

The Refresh button on the right side of each tab allows for quick up-to-date results.

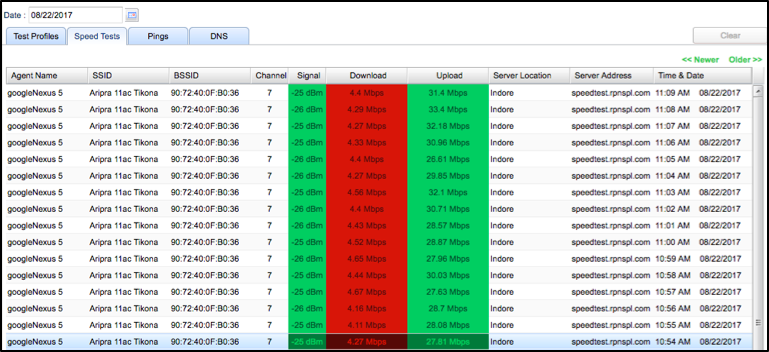

Speed Tests

Shows a table summary of Speed Test information including BSSID, SSID, and Channel the Agent was connected to when the Speed Tests were run.  These data points can be selected and cleared.


Right click on the column headers to add/hide different information columns, including Time & Date of when the test was run.

Newer and Older buttons quickly move the results to the next set in the window.



Pings

Shows a table summary of Ping test information information including BSSID, SSID, and Channel the Agent was connected to when the Ping tests were run.  These data points can be selected and cleared.


MOS

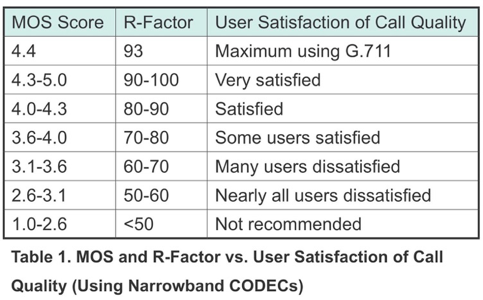

Mean opinion score (MOS) is a test that has been used for decades in telephony networks to obtain the human user's view of the quality of the network.




DNS

Shows a table summary of DNS test information including BSSID, SSID, and Channel the Agent was connected to when the DNS tests were run.  These data points can be selected and cleared.
