Configuration

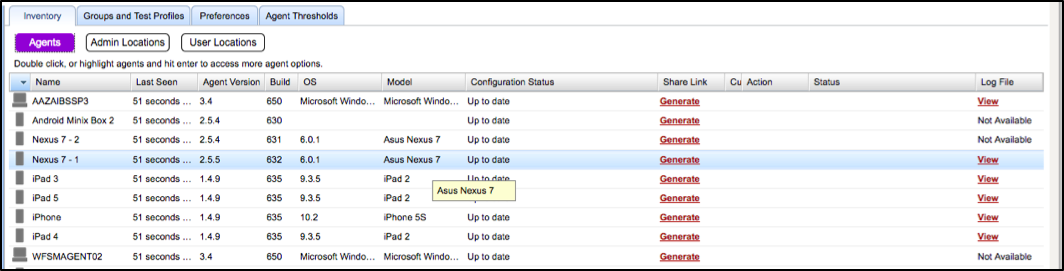

Inventory
The inventory is where all Optifi Agents tied to the account can be found, as well as more information about the specific device hardware and software.
Location folders can also be found in this section.
Configuration Status refers to having the most up-to-date Test Profiles.
Share Link generates a unique URL showing the results of that particular Optifi Agent. These links can be shared and have expirations set. At any time, the administrator can deactivate Share Links from the screen.
Log Files can be used to figure out issues with specific Agents. In the Agent Tree, right-click on an Agent and select Request Agent Logs.
Admin Locations & User Locations can rename or delete A.B.C.D folder structures set up by administrators or end-users. This allows users to correct naming mistakes, as well as delete entire folders of unwanted test results.

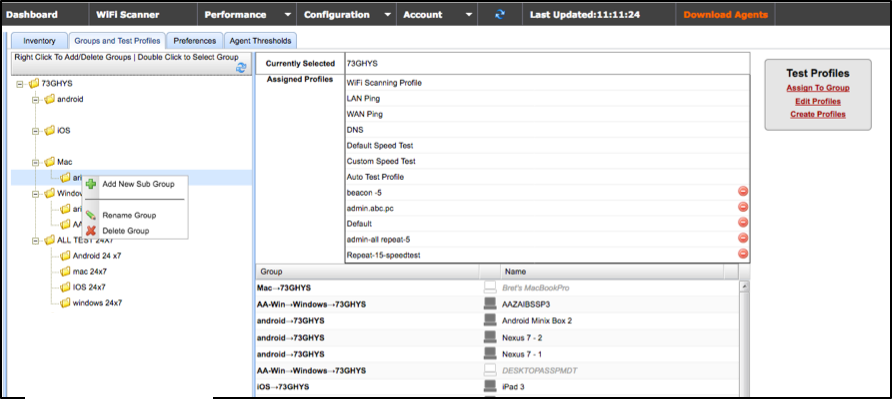

Groups and Test Profiles
Agents for easy organization and viewing from within the Tree by adding and moving agents into Group folders.
Double click on a folder to display its contents on the right hand side.
Drag Agents from the right hand side into preferred folders on the left.
Click the red circle next to Agents to move it back up to the default Profile ID folder.
Test Profiles
A Test Profile is a set of tests (Ex: 5 MB download speed test, wireless scan, and GPS detection) that are assigned to Optifi Agents. Once assigned, users can run these Test Profiles on the Optifi Agents and the results are sent to the Manager. For example, an administrator can instruct a user to take a mobile Optifi Agent and run specific Test Profiles while walking around a campus. Using different location techniques, these results will be uploaded to the Optifi server and the administrator will know where each test was taken.
If there is no connection to send the results, they will be stored locally until the Optifi Agent has a connection with the server.

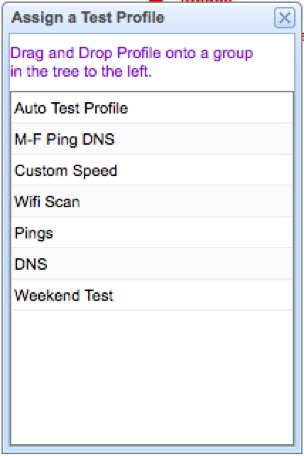

Assign to Group
A window will pop up with the created Test Profiles, which can be dragged and dropped onto the desired group folder or specific Optifi Agent.

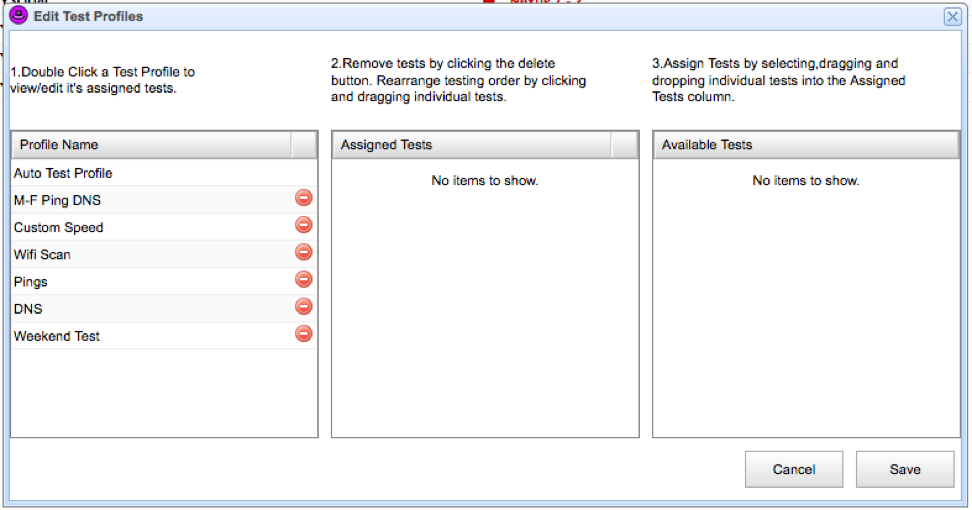

Edit Profiles
Edit Profiles allows the user to edit created profiles.
- Double click a profile to see its contents
- Right click to rename a profile
- Assigned Tests holds the current tests in the profile
- Available Tests holds the different types of tests that can be added to a profile
- Click SAVE to save and update changed profiles
Tests with the blue pen next to their names have additional attributes that can be changed.
Create Profiles
Allows the user to create profiles with the available tests. All profiles must have a name and at least one test. Some tests require further customization and users will be prompted to do so.

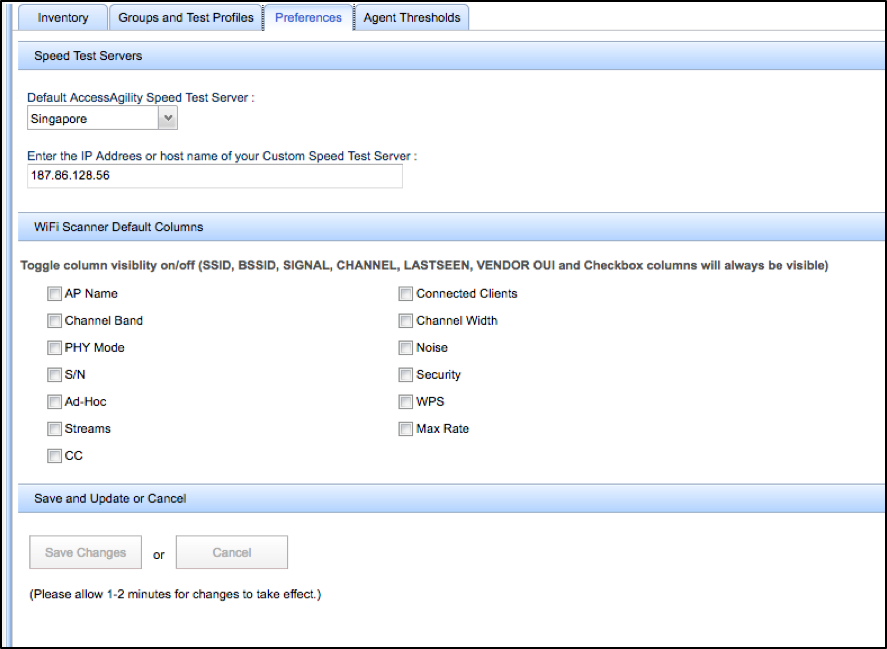

Preferences
Change default settings applied to new Optifi Agents added to your Profile ID.
Add custom speed test servers to use. (Default AccessAgility Speed Test Servers are being removed) Default Speed Tests will connect to the closest internet server to the Agent.
Turn on/off columns that appear in the WiFi Scanner table of results.
After any and all changes are made, please “Save Changes” for them to go into effect.

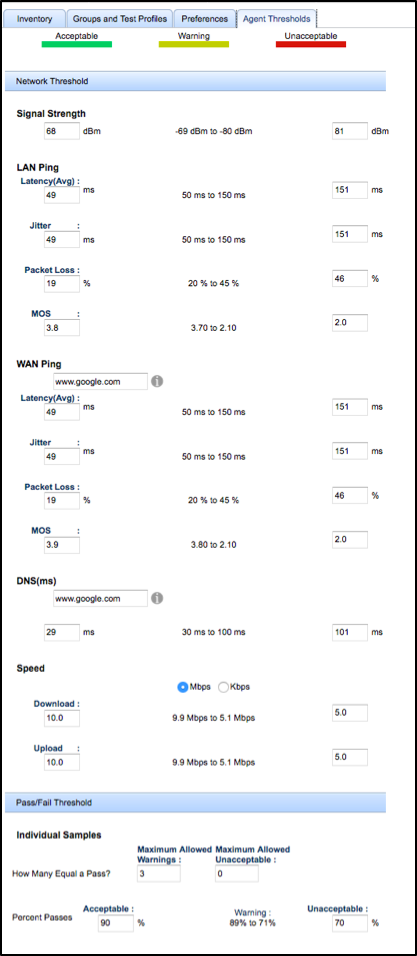

Agent Thresholds
This section Applies color thresholds to the Agent Status results in the Dashboard.
Acceptable is green, Warning is yellow, and Unacceptable is red.
From here, users can also adjust the Pass/Fail threshold, which allows the individual hours and whole days color scheme based on results.
After any and all changes are made, please “Save Changes” for them to go into effect.
