Floor Plan Creation

The New Floor Plan Creation Tool

WiFi Survey has a new floor plan creation tool for quick and simple drawings.

Choose the Floor Plans button.

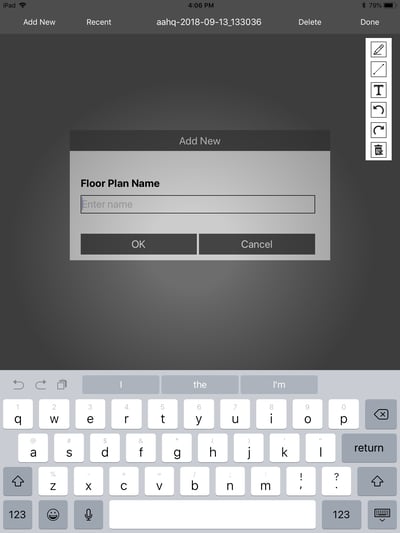

Name the floor plan so that it can saved and selected later.

6-floor-plan-creator

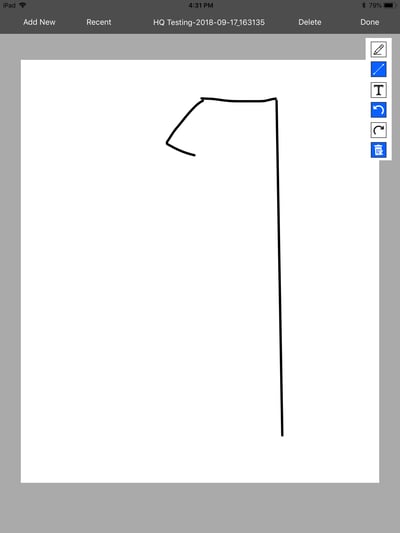

Use the Pencil Tool to draw the map freehand.
Use Straight Line Tool to draw the map freehand, but with straighter lines.  Using this tool will also auto-connect endpoints that are within 40px of each other for sharp corners.

7-draw-floor-plan

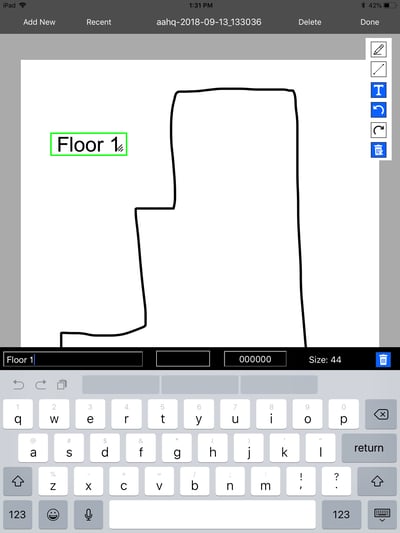

Select the Text Tool, then double click the screen to place text on the floor plan.

7a-draw-floor-plan



Click Done to save the floor plan.
